Trailblazer
You'll know if tiny living is for you
Trailblazer Overview
- Square Feet: 343
- Sleeps: Up To 4
- Layout: 1 Bedroom plus 1 loft & 1 bath
- Price Starts At: $119,800
- Ships To: United States
- Category: Tiny House on Wheels
- Dimensions: 8'5" x 42'3"
Reserve Your Build Spot For $2,500 Down
Our Thoughts

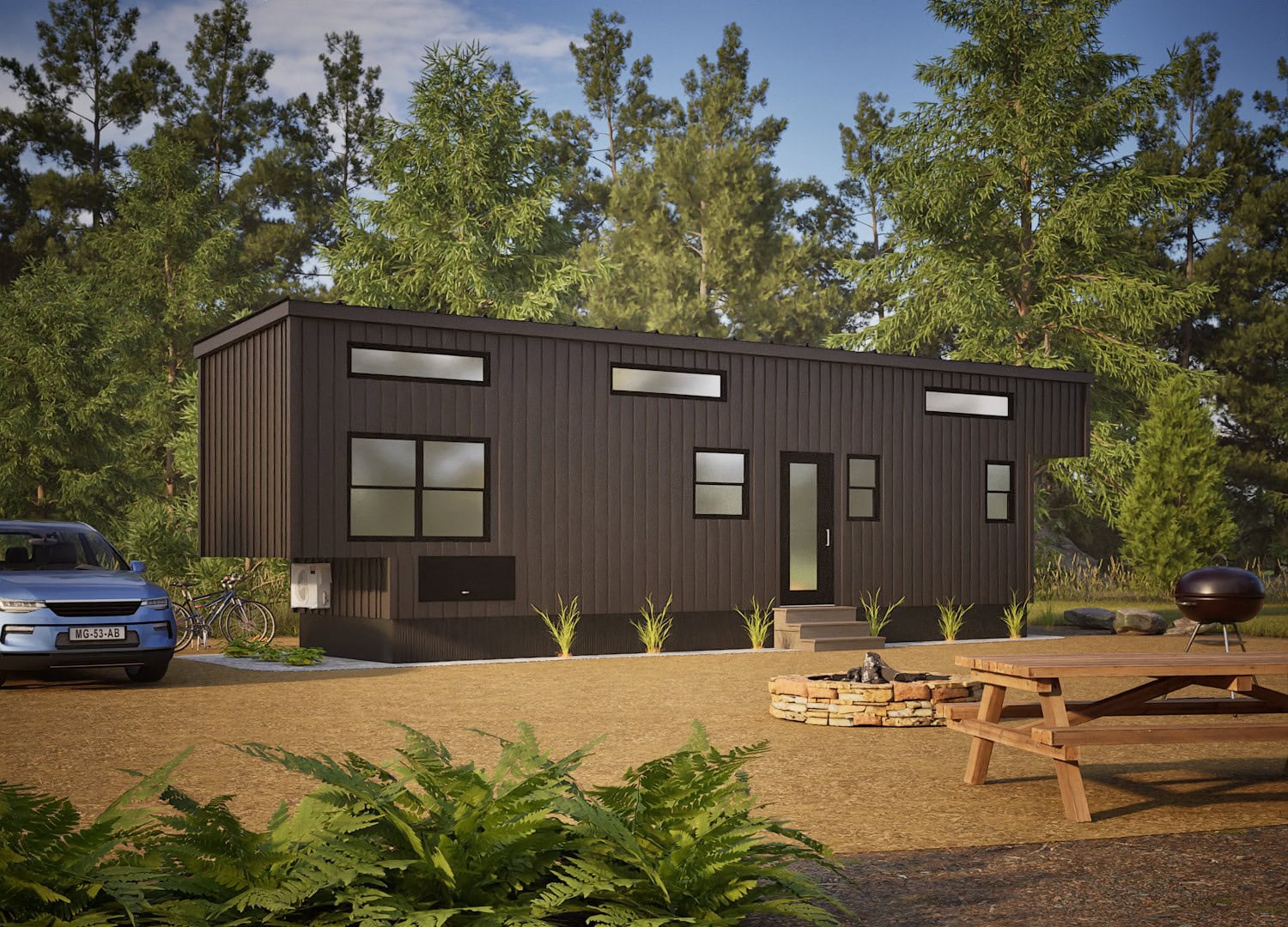

This modern 42′ tiny home on wheels features a sleek dark exterior with vertical siding, horizontal windows, and a contemporary flat roof design. Inside, the efficient linear layout maximizes the 34′ living space with a private bedroom, open-concept living room and kitchen with eat-in island, loft storage area, and full bathroom. Built on an 8′ wide frame, this mobile dwelling unit combines stylish modern aesthetics with practical functionality, offering integrated storage solutions, climate control, and professional finishes that prove compact living doesn’t require compromising on comfort or design.
How It Works
Share Your Vision
Tell us about your dream tiny home—your design preferences, lifestyle needs, and budget.
Custom Design Plan
Our experts create a personalized blueprint for your tiny home, ensuring functionality and style.
Construction & Assembly
Your tiny home is built with care using high-quality materials, leveraging our 100+ years of building experience.
Standard Features of Trailblazer Model
RVIA Seal (our Park Models are built to the ANSI A119.5 Standards)
Premier Materials metal roof and siding with 40 year warranty
Floors constructed of 2×6 joists spaced 16” on center with ¾” OSB subfloor
Provia entry doors with full glass
Custom amish made cabinets with soft close drawers and doors.
Full wired, plumbed, and insulated to meet ANSI A119.5 Standards
Trailblazer Specifications
Overview
-
- 8’5″ Wide x 42’3″ Long Overall Dimensions (Outside Overhangs)
- 8’2” Wide x 42’ Long = 343 Sq. Ft.
- 1 Main Floor Bedroom plus an 8′ x 16′ Loft
- 1 Bathroom
- Sleep up to 4 People
- A Great Model to Travel with, use at a Rental Property or Short-Term Living
- RVIA Seal Built to ANSI A119.5 Standards
Exterior Designs
- 8’ Wide x 34’ Long Tandem Axle Equipment Trailer
- 28 Gauge Premier Rib, Metal Siding (Black)
- 28 Gauge, Premier Rib Metal Roof (Black)
- 2”x 6” Roof Trusses, 24” On-Center w/ 1/2” OSB Underlayment & Ice Guard
- 2”x 4” Studs, 16” On-Center w/ 7/16” OSB Sheathing, House Wrap & Window/Seam Tape
- 2”x 6” Floor Joists, 16” On-Center w/ ¾” OSB Subfloor
- Vinyl, Double Pane Windows (Black)
- Provia 36” Half Glass Entry Door (Black)
- Matte Black Door Hardware w/ Deadbolt
- Storage Below Master Bedroom w/ 2 Access Doors (1 on each side)
Insulation
- R13 Closed Cell Spray Foam in the Walls
- R19 Closed Cell Spray Foam in the Floor & Ceiling
Interior Designs
- Luxury Vinyl Plank Floor Throughout
- Painted Birch Plywood Walls
- Knotty Pine T&G Ceiling
- Solid Birch Bathroom Door
- Matte Black Door Hardware
- Steps to Raised Bedroom
- Steps to Loft Bedroom w/ Handrail
- Open Shelf Closet in Master Bedroom
Kitchen Designs
- Custom Painted Top Cabinets
- Custom Painted Base Cabinet w/ Flat Panel Doors (Black)
- 18” x 22” Single Bowl, Drop-In Stainless-Steel Sink
- Matte Black Faucet & Cabinet Hardware
- Laminate Countertops
- Soft Close Door Hinges & Drawer Slider
- 2 Burner Induction Cooktop
- Over-the-Range Microwave
- Hotpoint 9.7 Cu Ft Counter-Depth Top-Freezer Refrigerator (Black)
- Stacked Laundry Center w/ 1.6 Cu Ft Front Load Washer & 3.4 Cu Ft Dryer
- 6′ Built-In Bar
- Built-In Storage Beneath Stairway
Bathroom Designs
- 3’ x 3’ Fiberglass Shower w/ Corner Seat
- Matte Black Shower Head & Faucets
- 24″ x 36″ Custom Vanity w/ Cultured Marble Top
- Additional Countertop & Storage Next to Shower
- Standard Elongated Toilet
- Exhaust Vent Fan w/ Light
Utilities
- 19 Gallon Electric Water Heater
- Interior Outlets (GFCI) & Switches w/ White Covers
- Recessed Lights Throughout
- 1 Maxim 1024 Exterior Wall Sconce
- 1 GFCI Exterior Outlet w/ Cover
- 1 Bosch 9,000 BTU Ductless Mini Split
- Safety Features include, Fire Extinguisher, Smoke & Fire Alarms
- 100 AMP Breaker Box w/ Conduit for Direct Tie-In
- All Plumbing ready to tie into 3” Pipe
- Water Line Ready to Connect to Female Garden Hose Bibb
Add-Ons & Upgrades
- Quartz Countertops (+$2,000 – $2,500 prices vary by color)
- Nickel Gap Walls (Painted) (ask for pricing)
- 7” Knotty Pine T&G Barn Siding Walls (+$5,600)
- 7” Knotty Pine T&G Barn Siding Ceiling (+$2,000)
- Hotpoint 24”- 4 Burner, 1.9 Cu Ft Freestanding Electric Range (+$1,600)
- On-Demand Tankless Water Heater (+$1,050)
- Frost Resistant Exterior Faucet (+$150)
- Incinerating Toilet (+$5,000)
- Composting Toilet (+$4,000)
- Solar Systems (Starting @ $25,000)
- Electric Fireplace (+$700)
- Radiant In-Floor Heating System (Ask for Pricing)
- Queen Sized Bed Frame w/ Storage Drawers (+$4,375)
- 74″ Tall Queen Sized Headboard w/ Storage (+$5,295)
- 84″ Tall Queen Sized Headboard w/ Storage (+$5,530)
- Custom Built-In Furniture (prices vary per piece)
- Custom Window Blinds (prices vary by size & style)
Trailblazer Home Floor Plan
